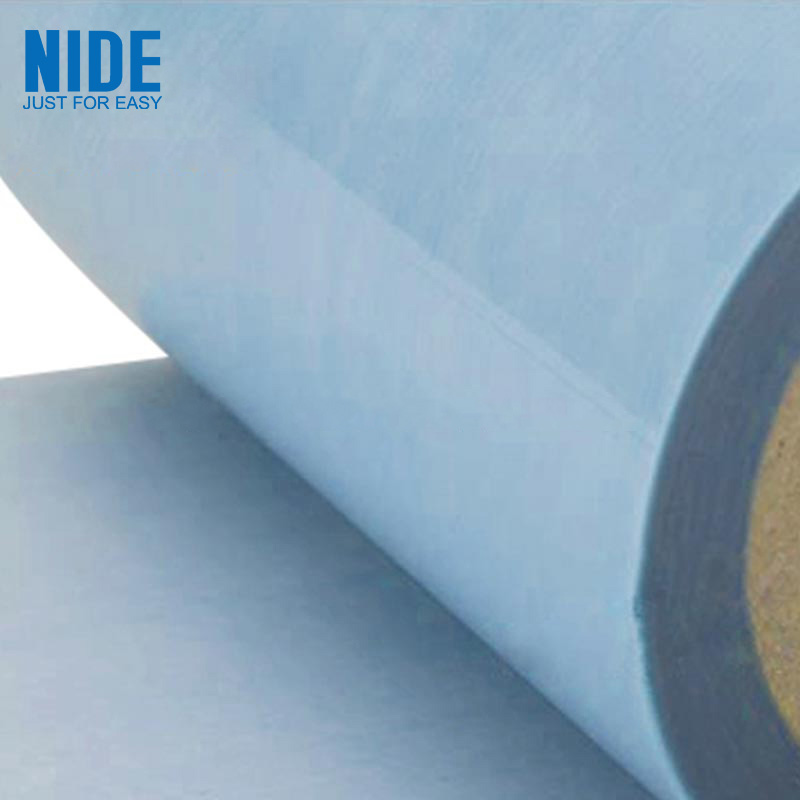

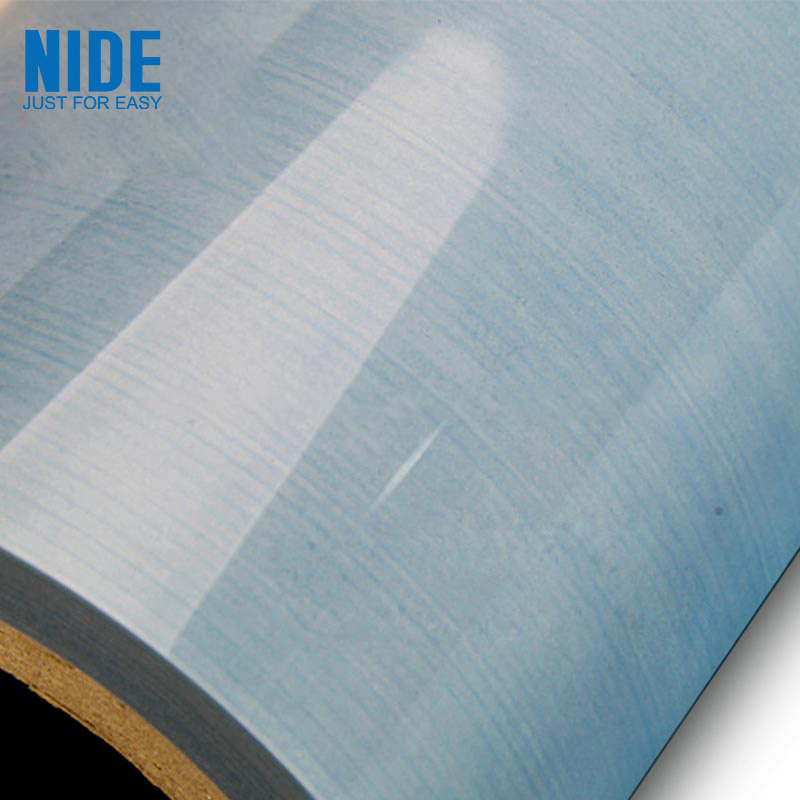

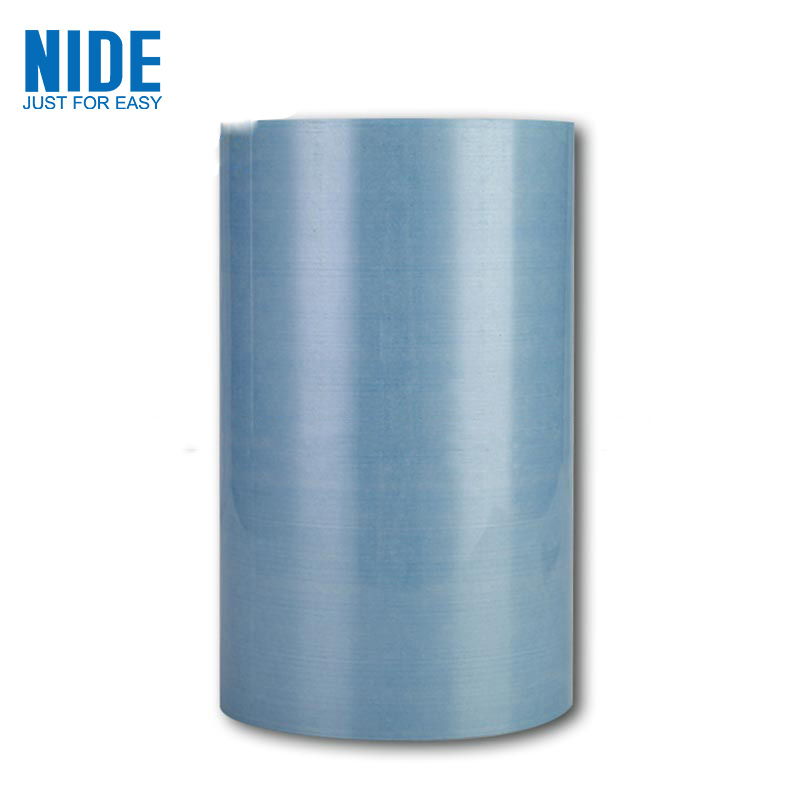

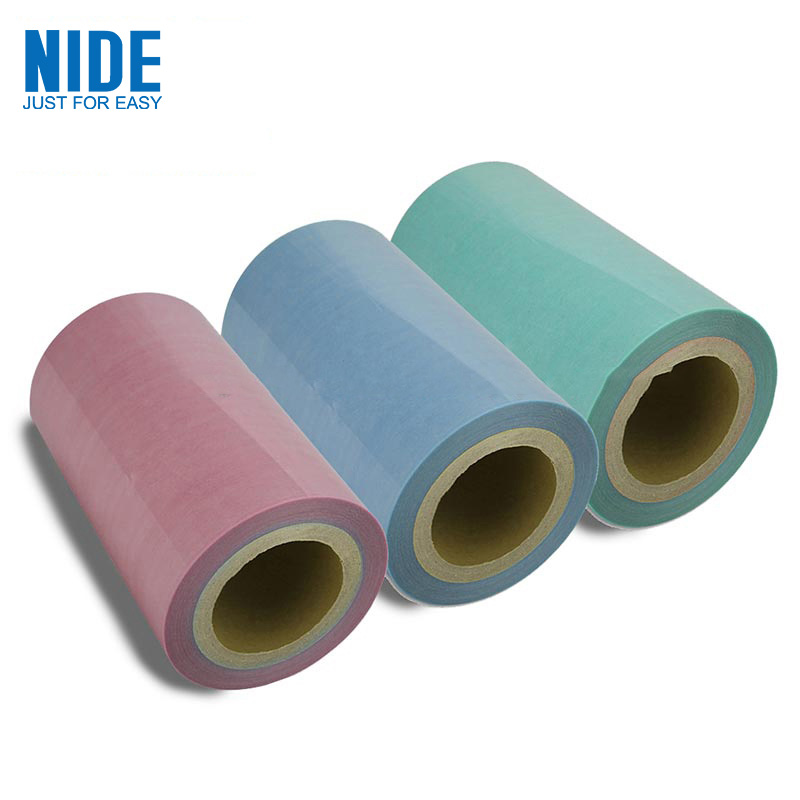

6644 F Class DMD Insulation Paper for Motor insulation he papanga hiato e rua-papanga ngohengohe he paparanga o te muka polyester roa he papanga kore-whatu me tetahi kiriata polyester maama miraka ranei kua herea ki te kapia F-grade (kapia polyurethane). He pai nga ahuatanga impregnation o te papanga kore me te kaha dielectric pai o te kiriata polyester.
Nga taonga |
Waeine |
Tawhā |
|||||||||
Te matotoru pepa whakamaarama |
MM |
0.09 |
0.11 |
0.15 |
0.19 |
0.20 |
0.23 |
0.25 |
0.30 |
0.36 |
0.41 |
He rereke te matotoru |
MM |
±0.01 |
±0.01 |
±0.02 |
±0.02 |
±0.02 |
±0.02 |
±0.03 |
±0.03 |
±0.04 |
±0.04 |
Te wetereo me te rereke |
GSM |
93±9 |
113±11 |
183±18 |
218±22 |
253±25 |
288±29 |
308±31 |
393±39 |
463±46 |
533±53 |
Te matotoru kiriata |
MM |
0.036 |
0.050 |
0.100 |
0.125 |
0.150 |
0.175 |
0.190 |
0.250 |
0.300 |
0.350 |
Ngaohiko pakaru |
KV |
≥5 |
≥6 |
≥9 |
≥10 |
≥11 |
≥13 |
≥14 |
≥16 |
≥18 |
≥22 |
Te kaha o te kaha (MD) |
N/CM |
≥60 |
≥80 |
≥150 |
≥190 |
≥220 |
≥250 |
≥280 |
≥330 |
≥350 |
≥380 |
Te kaha matara (TD) |
N/CM |
≥40 |
≥70 |
≥110 |
≥140 |
≥150 |
≥160 |
≥180 |
≥280 |
≥300 |
≥330 |
Te kaha o te whakakopa (MD) |
N/CM |
≥40 |
≥70 |
≥110 |
≥140 |
≥165 |
≥190 |
≥240 |
≥280 |
≥300 |
≥330 |
Te kaha o te whakakopa (TD) |
N/CM |
≥20 |
≥50 |
≥90 |
≥110 |
≥115 |
≥120 |
≥130 |
≥180 |
≥200 |
≥230 |
6644 F Class DMD Insulation Paper for Motor insulation e whakamahia ana i roto i nga motika iti-ngaohiko, taputapu hiko, taputapu hiko mo te mokowhiti mokowhiti, whakaahuru gasket, whakahuri-ki-te-huri, te waahi-ki-te-waahanga me te wetewete wedge, te whakawhiti whakawhiti whakawhiti ranei. , e tika ana mo te tukatuka miihini awhiowhio aunoa.
Ko te 6644 F Class DMD Insulation Paper for Motor insulation ka taea te penapena mo te wa roa (20 ° C, 50% r. h.).
