16 nga Waahanga Teitei Te Kounga Waahanga Matau Commutator Armature

He pai te nekeneke nekeneke AC kotahi. Ko te NIDE commutator e hipoki ana i te whanui, neke atu i te 1200 nga momo rereke rereke, tae atu ki te momo matau, momo riser, momo anga, momo mahere, mai i te OD 4mm ki te OD 150mm. Ko nga kaitarai e tino whakamahia ana ki te ahumahi miihini, nga taputapu hiko, nga taputapu o te whare, me etahi atu motika.Ka taea e koe te okioki ki te hoko i te Kaitautoko Motuhake mo te AC Motor mai i to maatau wheketere ka tukuna atu e matou ki a koe te ratonga pai i muri i te hoko me te tuku i te wa.

Tuku Uiui

Whakaahuatanga Hua

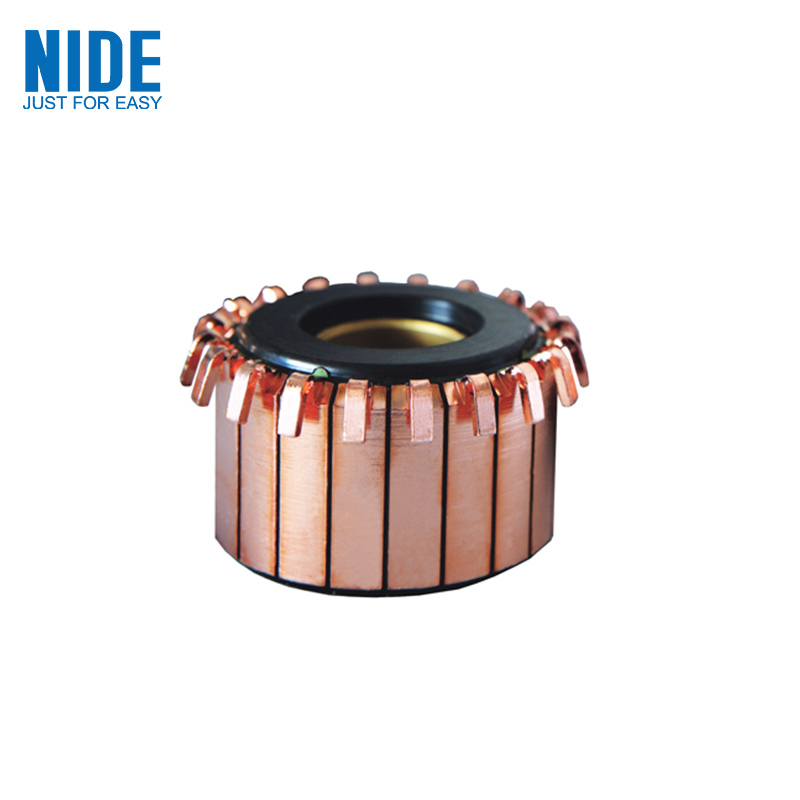

Ko te motuka motuka kotahi mo te motuka AC

1.Hua Whakataki

Ko te kaitahuri motuka kotahi mo te motuka AC he Kore mai i te mirumiru, nga kapiti, te pupuhi ranei i te mata.

Te whakamatautau ngaohiko: te pae ki te pae i te 500V, 1s, te pae ki te whanau i te 1500V, 1 min, kaore he pakaru, he kanapa ranei.

Whakamātautau miro: mahia he whakamātautau miro mo te kaihuri i raro i te 140 centigrade, 5000RPM, 3min. I muri i te whakamatautau, ko te inenga teitei o te diameter o waho he 0.015, ko te pae me te pae he 0.005.

Te ātete whakawera: 500V, neke atu i te 50MÎ©

2.Tawhā Hua (Whakaahua)

Wahi No.	O.D (D)	I.D (d)	Tapeke O D (D1)	Pae No(N)	Roa pae (L1)	Tapeke roa (L)
JZQE-RS12-148	63	13.2	73	24	16	26.5
JZQE-RS12-148B	63	20	73	24	16	26.5
JZQE-RS12-148C	63	13.2	73	24	16	26.5
JZQE-RS12-149	40	15	43	43	10	18.2
JZQE-RS31-150	44	12.08		23	10	12.5
JZQE-RS31-150B	44	12.35		23	10	12.5
JZQE-RS31-150C	44	12.06		23	10	12.5
JZQE-RS31-150D	44.2	12.08		23	10	12.5
JZQE-RS31-150E	44	12		23	10	12.5
JZQE-RS12-151	47.6	13.2	57	16	14	24.5
JZQE-RS12-151B	47.6	13.2	57	16	14	22
JZQE-RS12-151C	47.6	13	57	16	14	24.5
JZQE-RS12-151D	47.6	13	57	16	14	22
JZQE-RS12-151E	47.6	13.4	57	16	14	24.5
JZQE-RS31-169	38	12.08		26	10	14.3
JZQE-RS12-193	74	33	85	81	12	12
JZQE-RS12-247	19.5	4		7	3	5.5
JZQE-RS12-326	49	13.2		16	14	15
JZQE-RS32-348	58	24.1		25
JZQE-RS32-464	20.5	5	25	8	5.7	8.5
JZQE-RS32-464B	20.5	5	24.7	8	5.7	8.5
JZQE-RS32-464C	20.5	5	24.7	8	5.7	8.5
JZQE-RS32-464D	20.5	5	25	8	5.7	8.5
JZQE-RS32-464E	20.5	5	25	8	5.7	8.5
JZQE-RS12-480	78	23		25	13	23
JZQE-RS32-508	20.5	3.175	25	8	4.2	8.5
JZQE-RS31-525	44.2	12.08		23	10	13
JZQE-RS31-525B	44.2	12.35		23	10	13
JZQE-RS31-525C	44.2	12		23	10	13
JZQE-RS32-555	20.5	3	24.7	8	5.7	8.6
JZQE-RS12-593	71.5	13.2	64	24	28	32.5
JZQE-RS11-608	52.5	16		19	6.5	16
JZQE-RS11-608B	52.5	16		19	6.5	16
JZQE-RS32-618	23	4	28.5	10	6.5	10
JZQE-RS32-618B	22.5	4	28	10	6.5	10
JZQE-RS32-651	47.6	13	56.5	16	12.5	18.5
JZQE-RS32-664	48	13.4	57.5	16	12.5	24.5
JZQE-RS12-688	59	24.1	58	25	34.9	22
JZQE-RS12-689	59	24.1	58	25	34.9	19.5
JZQE-RS32-717	47.6	13.3	56.5	16	12	24.77
JZQE-RS32-739	44.2	13.8		23	10	13
JZQA-RS12-752	31	11.5	40	21	25.5	28
JZQB-RS31-792	61	13.5		29	9	16
JZQE-RS31-796	44.2	9		23	10	12.5
JZQE-RS12-846	48.5	10.2	48.5	25	6	11
JZQE-RS32-854	47.6	13.2	56.6	16	7	22
JZQE-RS12-907	48.5	10.2	48.5	25	6	10
JZQE-RS12-926	64	20	60	31	5	17

3.Whakaahua Hua me te Tono

Ka whakamahia tenei commutator i roto i te motini AC, te motuka wahanga kotahi, nga motuka motuka, nga motuka whakaoho motopaika, nga motuka taputapu hiko me nga miihini motuhake.
