Kounga teitei 32 Wāhanga Armature Commutator Mo Nga Utauta Hiko

Kounga teitei 32 Wāhanga Armature Commutator Mo Nga Utauta Hiko Ka taea te tautuhi i te commutator he pana hurihuri hiko i roto i tetahi momo kaihanga me nga motuka. Ka whakamahia tenei ki te huri i te ahunga o naianei i waenga i te ara iahiko o waho me te rotor. Kei roto he porotakaroa me te maha o nga waahanga whakapiri whakarewa e takoto ana i runga i te papaa hurihuri o te miihini. Ko nga paraihe, he hononga hiko ranei ka mahia ki te taputapu perehi waro i te taha o te commutator, e hoahoa ana i te paheketanga ma nga waahanga karapīpiti o te commutator i te wa e huri haere ana. Ko nga awhi awhiowhio e hono ana ki nga waahanga o te commutator.

Tauira:NDPJ-HXQ-03006

Tuku Uiui

Whakaahuatanga Hua

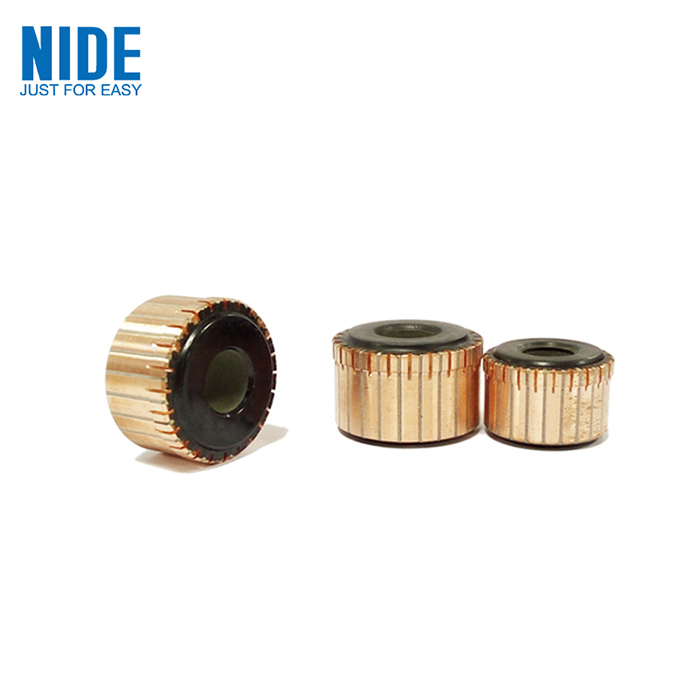

Kounga teitei 32 Wāhanga Armature Commutator Mo Nga Utauta Hiko

1.Hua Whakataki

Ka taea te tautuhi i te commutator he pana hurihuri hiko i roto i tetahi momo kaihanga me nga motuka. Ka whakamahia tenei ki te huri i te ahunga o naianei i waenga i te ara iahiko o waho me te rotor. Kei roto he porotakaroa me te maha o nga waahanga whakapiri whakarewa e takoto ana i runga i te papaa hurihuri o te miihini. Ko nga paraihe, he hononga hiko ranei ka mahia ki te taputapu perehi waro i te taha o te commutator, e hoahoa ana i te paheketanga ma nga waahanga karapīpiti o te commutator i te wa e huri haere ana. Ko nga awhi awhiowhio e hono ana ki nga waahanga o te commutator.

Ingoa hua:	DC motor wahi commutator
MAI	37.5
ID	f13
Teitei Tapeke	26
Waahanga Roa	23
Matau/Riser dia.	38.5
pae no.	32

2.Tawhā Hua (Whakaahua)

Wāhanga No.	O.D (D)	I.D (d)	Tapeke O D (D1)	Pae No(N)	Pae roa (L1)	Tapeke roa (L)
JZQE-RS12-148	63	13.2	73	24	16	26.5
JZQE-RS12-148B	63	20	73	24	16	26.5
JZQE-RS12-148C	63	13.2	73	24	16	26.5
JZQE-RS12-149	40	15	43	43	10	18.2
JZQE-RS31-150	44	12.08		23	10	12.5
JZQE-RS31-150B	44	12.35		23	10	12.5
JZQE-RS31-150C	44	12.06		23	10	12.5
JZQE-RS31-150D	44.2	12.08		23	10	12.5
JZQE-RS31-150E	44	12		23	10	12.5
JZQE-RS12-151	47.6	13.2	57	16	14	24.5
JZQE-RS12-151B	47.6	13.2	57	16	14	22
JZQE-RS12-151C	47.6	13	57	16	14	24.5
JZQE-RS12-151D	47.6	13	57	16	14	22
JZQE-RS12-151E	47.6	13.4	57	16	14	24.5
JZQE-RS31-169	38	12.08		26	10	14.3
JZQE-RS12-193	74	33	85	81	12	12
JZQE-RS12-247	19.5	4		7	3	5.5
JZQE-RS12-326	49	13.2		16	14	15
JZQE-RS32-348	58	24.1		25
JZQE-RS32-464	20.5	5	25	8	5.7	8.5
JZQE-RS32-464B	20.5	5	24.7	8	5.7	8.5
JZQE-RS32-464C	20.5	5	24.7	8	5.7	8.5
JZQE-RS32-464D	20.5	5	25	8	5.7	8.5
JZQE-RS32-464E	20.5	5	25	8	5.7	8.5
JZQE-RS12-480	78	23		25	13	23
JZQE-RS32-508	20.5	3.175	25	8	4.2	8.5
JZQE-RS31-525	44.2	12.08		23	10	13
JZQE-RS31-525B	44.2	12.35		23	10	13
JZQE-RS31-525C	44.2	12		23	10	13
JZQE-RS32-555	20.5	3	24.7	8	5.7	8.6
JZQE-RS12-593	71.5	13.2	64	24	28	32.5
JZQE-RS11-608	52.5	16		19	6.5	16
JZQE-RS11-608B	52.5	16		19	6.5	16
JZQE-RS32-618	23	4	28.5	10	6.5	10
JZQE-RS32-618B	22.5	4	28	10	6.5	10
JZQE-RS32-651	47.6	13	56.5	16	12.5	18.5
JZQE-RS32-664	48	13.4	57.5	16	12.5	24.5
JZQE-RS12-688	59	24.1	58	25	34.9	22
JZQE-RS12-689	59	24.1	58	25	34.9	19.5
JZQE-RS32-717	47.6	13.3	56.5	16	12	24.77
JZQE-RS32-739	44.2	13.8		23	10	13
JZQA-RS12-752	31	11.5	40	21	25.5	28
JZQB-RS31-792	61	13.5		29	9	16
JZQE-RS31-796	44.2	9		23	10	12.5
JZQE-RS12-846	48.5	10.2	48.5	25	6	11
JZQE-RS32-854	47.6	13.2	56.6	16	7	22
JZQE-RS12-907	48.5	10.2	48.5	25	6	10
JZQE-RS12-926	64	20	60	31	5	17

3.Product Feature me te Taupānga

Ka whakamahia tenei commutator i roto i te motuka AC, te motuka wahanga kotahi, nga motuka motuka, nga motuka whakaoho motopaika, nga motuka taputapu hiko me nga miihini motuhake.

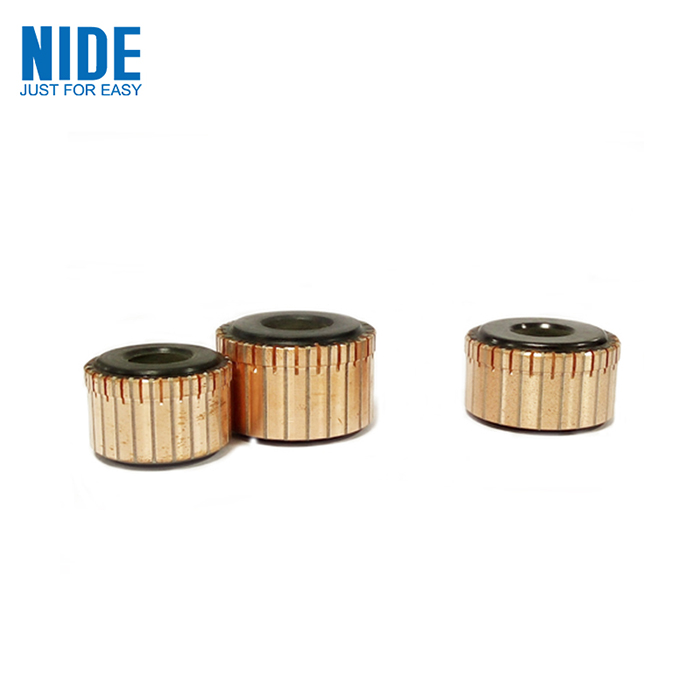

4.Nga Taipitopito Hua

Ko te motuka motuka kotahi mo te motuka AC
